Sulzer Mixpac Static Mixer MGQ 08-18T

Mixpac Sulzer static mixer MGQ 08-18T is used to dispense adhesives from 200 ml, 400 ml, 600 ml and 1,500 ml series C cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a simple integral nut mounting method for attachment to two-component cartridges.

Static Mixer MGQ 08-18T Specifications

Property Value Property Value
Product MGQ 08-18T Element Color: Green
Description Mixer, Square, 8mm x 18 ELE, 1:1 / 2:1, integrated screw Element Material PP
Old Product Number n/a Housing Type Square
# of Elements: 18 Housing Material PP
ID* mm 8.7 Tip Style: Stepped Tip
ID* inch 0.34 Attach to Cartridge Integral Nut
Length mm 129
Length inch 5.08

* inner diameter

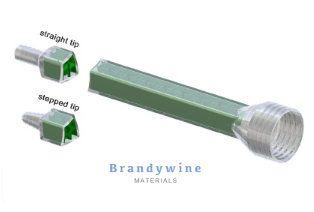

image 016 sulzer xixpac MGQ static mixers2

Mixpac nozzle MGQ 08-18T is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.

Typical applications for dispensing adhesive with Sulzer static mixer MGQ 08-18T include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
