Sulzer Mixpac Static Mixer MFQ 05-16L

Mixpac Sulzer static mixer MFQ 05-16L is used to dispense adhesives from 200ml and 400 ml F-eries cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a simple interlock mounting method for attachment to two-component cartridges.

Static Mixer MFQ 05-16L Specifications

Property Value Property Value
Product MFQ 05-16L Element Color: Green
Description Mixer, Square, 5mm x 16 ELE, 1:1/2:1, Luer end Element Material PP
Old Product Number n/a Housing Type Square
ID* mm 5.3 Housing Material PP
ID* inch 0.21 Tip Style: Stepped Tip
Length mm 100 Attach to Cartridge Interlock
Length inch 3.94

* inner diameter

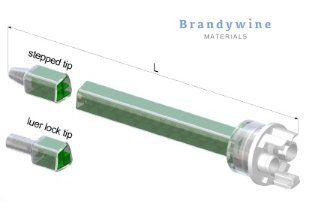

image 014 sulzer mixpac MFQ static mixers2

Mixpac nozzle MFQ 05-16L is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.

Typical applications for dispensing adhesive with Sulzer static mixer MFQ 05-16L include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
